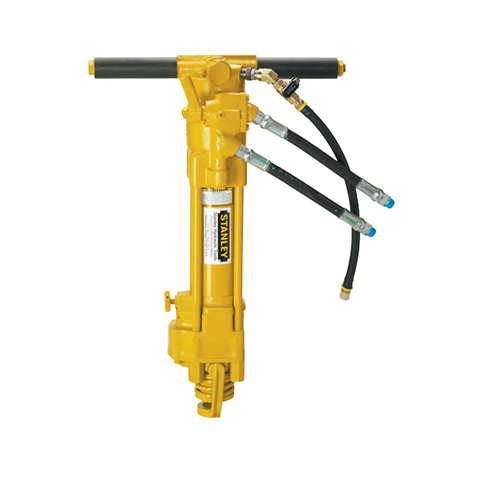

SK58 Sinker Drill


Model: SK58

Brand: STANLEY

Application:

The SK58 is designed for blast hole drilling, leak detection for gas utilities, and dowel hole drilling up to 3 inches / 7.6 cm in diameter and 20 feet / 6 m deep.

Availability:

Product Description

The Stanley SK58 Sinker Drill is a heavy duty rock drill designed for drilling underwater in concrete, rock and masonry. The feathering on/off valve makes starting the drill bit relatively easy. The SK58 uses industry standard drill steel and can drill up to a 3" (75mm) diameter hole up to 20' (6 m) deep. The direct drive rotation motor drives the 1" x 4¼" hex shank drill steel and is adjustable between 0 and 300 rpm. Air is required to clear holes of debris. Painted hi-visibility yellow.


Features

• T-Handle with feathering on/off valve allows easy start and control

• Rotation speed adjustable between 0 and 300 rpm

• Stainless Steel spools and fasteners

• Four tie rod design for durability

• Uses standard rock drill steels: 1" x 4¼" Hex Shank

• Drills up to 3 in diameter hole up to 20' deep

• Operates in any position

• Requires air to clear holes of debris

• Trouble free drill steel latch retainer


ModelPart No.Drill CapacitySteel TypeCircuit TypeFlow RangeOptimum FlowWorking PressureFull Relief SettingRotation SpeedWeight
(less tool bit)
LengthWidth
(at handles)
Hydraulic PortsCouplersHose WhipsAir Port
SK58SK583103" (7.6 cm) Diameter hole, up to 20' (6 m)  deep1 in x 4¼" Hex ShankOpen Center7-9 gpm / 26-34 lpm8 gpm / 30 lpm1500-2000 psi /105-140 bar2250 psi / 155 bar0-300 rpm70 lbs / 31.7 kg26" / 66 cm18" / 46 cm -8 SAE O-ringNoYes (3⁄8" NPT Male thread)½" NPT
