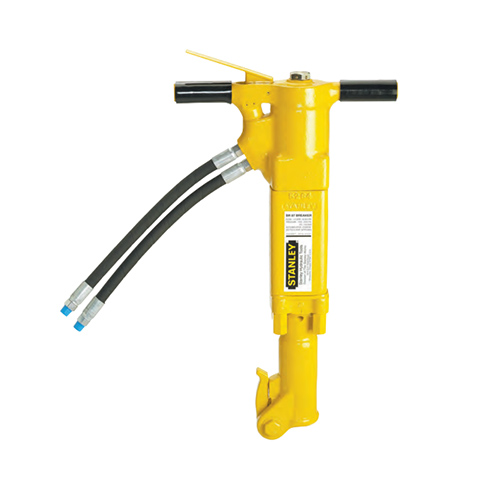

Product Description
The BR87 is the largest breaker in Stanley Hydraulic Tools line up of underwater paving breakers. The BR87 is in the 90 lb class of breakers and with it's long piston stroke, is our hardest hitting hand held breaker. It is used for heavy concrete and rock breaking, coral removal and rod and anchor driving. The feathering on/off valve controls speed and allows easier initial tool placement. Standard 1-1 ⁄8" x 6" hex chuck and latch retainer. Painted hi-visibility yellow.
Features
• T-Handle with large on/off trigger for precise control
• Stainless Steel spool and fasteners
• Trouble free diaphragm accumulator provides additional blow energy and reduces recoil
• Feathering on/off valve allows easy initial tool bit placement
• Uses standard 1-1⁄8" x 6" hex shank tool bits
• Four tie rod design for durability
• Operates in any position
• Modular design for ease of service
• Latch retainer
| Model | Part No. | Performance | Steel Capacity | Handle Type | Circuit Type | Flow Range | Optimum Flow | Working Pressure | Full Relief Setting | Weight (less tool bit) | Length | Width (at handles) | Hydraulic Ports | Couplers | Hose Whips |
| BR87 | BR87320 | 1080 bpm @ 8 gpm | 1-1⁄8" x 6" Hex | T-Handle | Open Center | 7-9 gpm / 26-34 lpm | 8 gpm / 30 lpm | 1500-2000 psi / 105-140 bar | 2250 psi / 155 bar | 85 lbs / 39 kg | 29" / 73.6 cm | 16" / 41 cm | -8 SAE O-ring | No | Yes (3⁄8" NPT Male thread) |
