Product Description

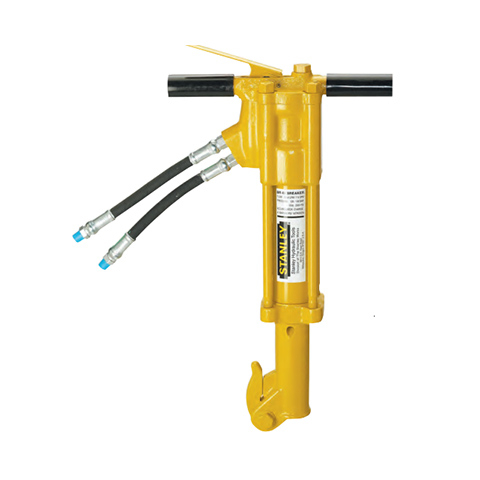

The BR45 is the smallest breaker in the Stanley Hydraulic Tool lineup of underwater breakers. The feathering on/off valve controls speed and allows easier initial tool placement. Standard 1" hex chuck and latch retainer. Painted hi‑visibility yellow.
Features
• T-Handle with large on/off trigger for precise control
• Stainless Steel spool and fasteners
• Trouble free diaphragm accumulator provides additional blow energy and reduces recoil
• Feathering on/off valve allows easy initial tool bit placement
• Uses standard d 1" x 4 1⁄4" hex shank tool bits
• Four tie rod design for durability
• Operates in any position
• Modular design for ease of service
• Latch retainer
| Model | Part No. | Performance | Steel Capacity | Handle Type | Circuit Type | Flow Range | Optimum Flow | Working Pressure | Full Relief Setting | Weight (less tool bit) | Length | Width (at handles) | Hydraulic Ports | Couplers | Hose Whips |
| BR45 | BR45350 | 1525 bpm @ 8 gpm | 1" x 4 1⁄4" Hex | T-Handle | Open Center | 7-9 gpm / 26-34 lpm | 8 gpm / 30 lpm | 1500-2000 psi/105‑140 bar | 2250 psi / 155 bar | 43 lbs / 19.5 kg | 25" / 63.4 cm | 14" / 35 cm | -8 SAE O-ring | No | Yes(3/8" NPT Male thread) |
