Product Description

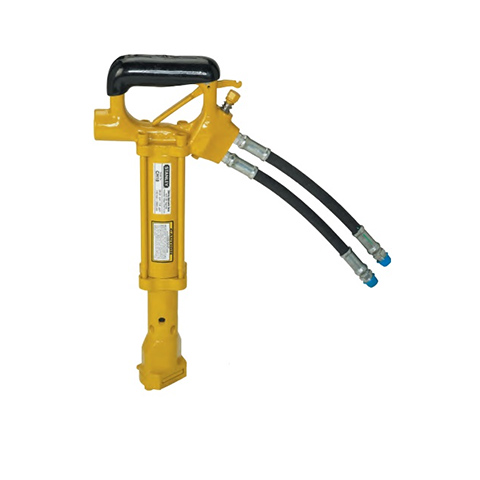

The Stanley CH18311 Chipper is a compact, hydraulic powered, underwater chipping hammer used for medium chipping of concrete, masonry and rock. The ergonomic ”D“ handle with inside trigger prevents accidental operation of the tool. The handle is Plastisol coated for diver comfort. The CH18 has a slide latch design tool bit retainer that will accept .580 hex shank, round collar tool bits. Painted hi-visibility yellow.
Specifications
• Ergonomic ”D“ handle with inside trigger
• Stainless Steel spool and fasteners
• Handle is Plastisol coated for diver comfort
• Uses standard .580 hex shank, round collar tool bits
• High power to weight ratio
• Operates in any position
| Model | Part No. | Steel Capacity | Handle Type | Circuit Type | Flow Range | Optimum Flow | Working Pressure | Full Relief Setting | Weight(less tool bit) | Length | Hydraulic Ports | Couplers | Hose Whips |
| CH18 | CH18311 | .580 Hex Shank, Round Collar Tool Bits | "D" Handle, with Inside Trigger | Open Center | 7-9 gpm / 26-34 lpm | 8 gpm / 30 lpm | 1500-2000 psi /105-140 bar | 2250 psi / 155 bar | 18.2 lbs / 8.2 kg | 20" / 51 cm | -6 SAE O-ring | No | Yes ( 3 ⁄8" NPT Male thread |
