DL07 Drill


Model: DL07

Brand: STANLEY

Application:

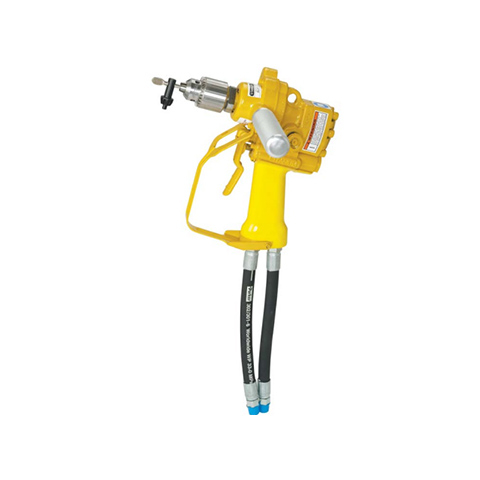

The Stanley DL07 hydraulic drill is a forward/reverse, variable speed drill with a ½" keyed chuck for underwater drilling applications.
Availability:

Product Description

The Stanley DL07 hydraulic drill is a forward/reverse, variable speed drill with a ½" keyed chuck for underwater drilling applications. The DL07 has more than enough torque to drill most steel, masonry, wood or coral. A two position assist handle and trigger guard are standard. See chart below for speeds at select gpm of hydraulic flow. Painted hi-visibility yellow.


Specifications

• Integral Stanley Hyrevz gear motor produces high torque

• Stainless Steel spools and fasteners

• Forward-Reverse with variable speed

• Dual position assist handle provides increased control

• Oversized trigger with guard for operator comfort

• Wiper seals on reversing and trigger spool

• Built in reverse check valve ensures long seal life

• Plastisol handle for comfortable ergonomic grip

• Forward position of handle provides better balance

• Open Center/Closed Center-Dual Spool Feature

• Cast-in lifting eye


ModelPart No.Chuck CapacityFlow RangeWorking PressureFull Relief SettingWeightLengthHydraulic PortsCouplersHose Whips
DL07DL07652½" / 12 mm3-10 gpm / 11.3-38 lpm1000-2000 psi / 70-140 bar2250 psi / 155 bar7.8 lbs / 3.5 kg10½" / 26.7 cm - 8 SAE O-ringNoYes (3⁄8" NPT Male Thread)
