Product Description

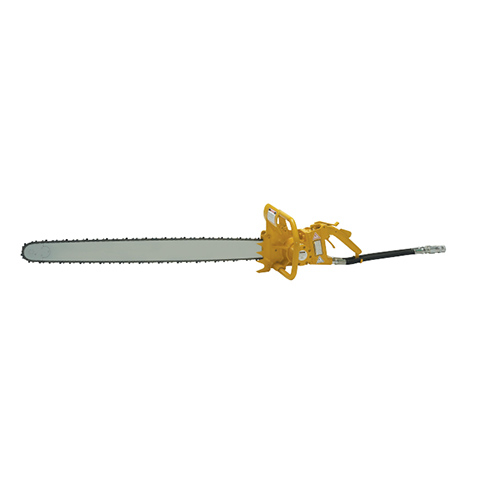

The CS11 is an extreme duty hydraulic powered chain saw for cutting all types of wood structures underwater - including bridge pilings, pier and dock timbers. It‘s robust design and high torque gear motor provides divers instant chain speed to cut through the toughest timbers with ease. The power to weight ratio is significantly higher than any other wood cutting chain saw and is available with bar lengths up to 42" (107 cm). Painted hi-visibility yellow.
Features
• Integral Stanley Hyrevz gear motor produces high torque
• Direct drive motor – no chain coast when trigger is released
• Stainless steel spool and fasteners
• Interlocking safety trigger and hand guard
• Large assist handle
• Manual chain oiler
• Adjustable automatic chain oiler
• Bucking cleat
• Wide flow range
• Order bar and chain separately
| Model | Cut Capacity | Chain Type | Circuit Type | Flow Range | Optimum Flow | Working Pressure | Full Relief Setting | Motor Speed @ 12 gpm | Chain Speed @ 12 gpm | Weight (less bar/chain) | Length (less bar/chain) | Width | Hydraulic Ports | Couplers | Hose Whips |
| CS11 | 24, 32, 36 & 42" / 61, 81, 91 & 107 cm | 3⁄8" Pitch | Open Center | 10-14 gpm / 38-53 lpm | 14 gpm / 53 lpm | 1500-2000 psi / 105-140 bar | 2250 psi / 155 bar | 5295 rpm | 2591' per min / 13,16 meters per sec | 17 lbs / 7.7 kg | 17" / 43 cm | 9" / 23 cm | -8 SAE O-ring | Yes | Yes |
| CS113NO001,Couplers, CE,No Bar & Chain Order Bar and Chain Separately Below | 24, 32, 36 & 42" / 61, 81, 91 & 107 cm | 3⁄8" Pitch | Open Center | 10-14 gpm / 38-53 lpm | 14 gpm / 53 lpm | 1500-2000 psi / 105-140 bar | 2250 psi / 155 bar | 5295 rpm | 2591' per min / 13,16 meters per sec | 17 lbs / 7.7 kg | 17" / 43 cm | 9" / 23 cm | -8 SAE O-ring | Yes | Yes |
