Product Description

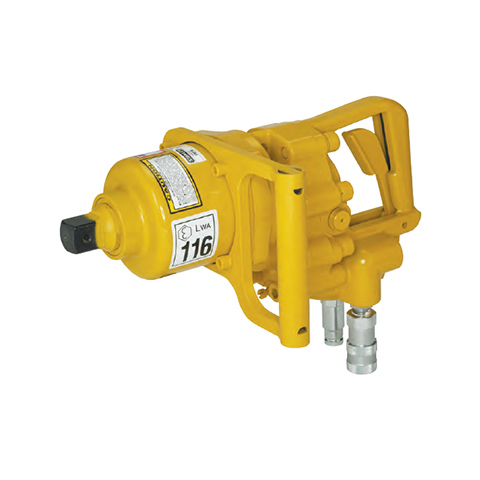

The Stanley IW16 is a heavy duty 1" square drive impact wrench designed for the toughest underwater bolting applications. Powered by a Stanley integral Hyrevz motor, the IW16 has a durable swing hammer impact mechanism with adjustable impact intensity from 500 to 2500 ft lbs (680 to 3400 Nm) of torque. Designed to run from a wide range of hydraulic circuits. "D" style grip handle with multi-position assist handle and hi-visibility yellow paint is standard.
Specifications
• Integral Stanley Hyrevz gear motor produces high torque
• Stainless Steel spools and fasteners
• Forward-Reverse with variable speed
• "D" style grip handle with inside trigger
• Feathering on/off trigger for precise control
• Adjustable impact intensity
• 2500 ft lbs/3400 Nm of maximum impact torque
• Durable swing hammer mechanism
• Cast-in lifting eye
| Model | Part No. | Capacity | Torque | Flow Range | Working Pressure | Full Relief Setting | Weight | Length | Width | Hydraulic Ports | Connect Size and Type | Couplers | HOSE WHIPS |
| IW16 | IW16350 with couplers, CE | 1 IN. SQUARE DRIVE | 500 -2500 ft lbs / 680-3400 Nm | 7-12 gpm / 26-45 lpm | 1500 - 2000 PSI / 105 - 140 BAR | 2250 psi / 155 bar | 26 lbs / 12 kg | 15" / 38 cm | 4.5" / 11 cm | -8 SAE O-RING | 3⁄8" Male Pipe Adapter | Yes | NO |
