Product Description

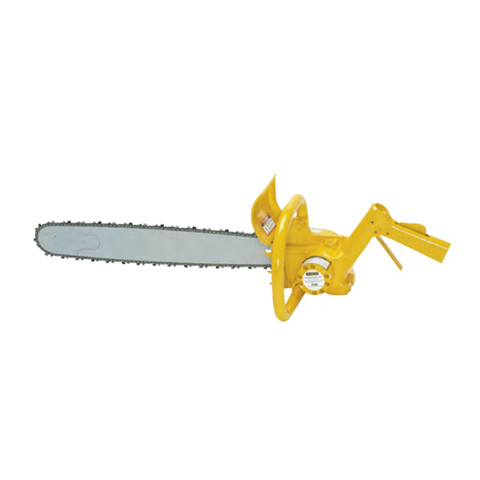

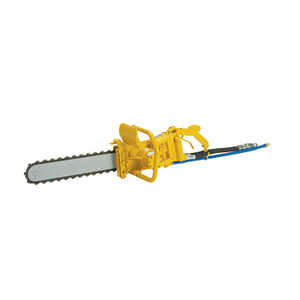

The CS06 is a hydraulic powered chain saw for cutting all types of wood structures underwater including bridge pilings, pier and dock timbers. It's compact design and high torque gear motor provides divers instant chain speed to cut through the toughest timbers with ease. The power to weight ratio is significantly higher than any other wood cutting chain saw and is available with bar lengths up to 20" (51 cm). Painted hi-visibility yellow.
Features
• Integral Stanley Hyrevz gear motor produces high torque
• Direct drive motor - no chain coast when trigger is released
• Stainless Steel spool and fasteners
• Interlocking safety trigger and hand guard
• Low kick back bar and chain - standard
• Open Center/Closed Center-Dual Spool Feature
• Large assist handle
• Adjustable chain oiler
• Bucking cleat
• Wide flow range
| Model | Cut Capacity | Chain Drive | Chain Type | Flow Range | Optimum Flow | Working Pressure | Full Relief Setting | Motor Speed @ 8 gpm | Chain Speed @ 8 gpm | Weight (less bar/chain) | Length (less bar/chain) | Width | Hydraulic Ports | Connection Size and Type | Couplers | Hose Whips |
| CS06920 | 15 / 38 cm | Standard Floating Rim Sprocket & Wear Plates | 0.325" Pitch | 7-9 gpm / 26-34 lpm | 8 gpm / 30 lpm | 1500-2000 psi / 105-140 bar | 2250 psi / 155 bar | 8540 rpm | 3238' per min /16,45 meters per sec | 7.3 lbs / 3.3 kg | 14" / 36 cm | 9" / 23 cm | -8 SAE O-ring | 3⁄8" Male Pipe Adapter | No | No |
| CS06930 | 20" / 51 cm | Standard Floating Rim Sprocket & Wear Plates | 0.325" Pitch | 7-9 gpm / 26-34 lpm | 8 gpm / 30 lpm | 1500-2000 psi / 105-140 bar | 2250 psi / 155 bar | 8540 rpm | 3238' per min /16,45 meters per sec | 7.3 lbs / 3.3 kg | 14" / 36 cm | 9" / 23 cm | -8 SAE O-ring | 3⁄8" Male Pipe Adapter | No | No |
