Product Description

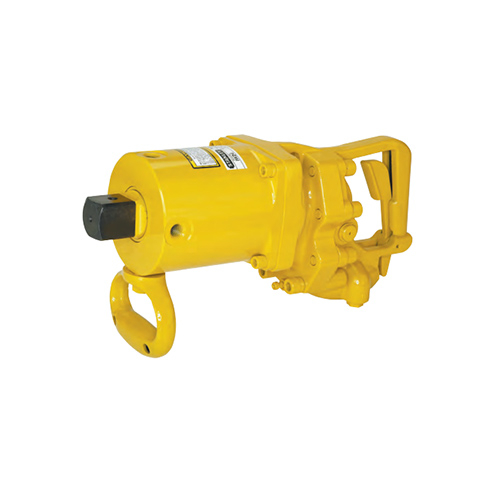

The Stanley IW24 is an extreme duty 1½" square drive impact wrench designed for the toughest underwater bolting applications. Powered by a Stanley integral Hyrevz motor, the IW24 has a durable swing hammer impact mechanism with adjustable impact intensity from 800 to 3500 ft lbs (1088 to 4760 Nm) of torque. Designed to run from a wide range of hydraulic circuits, this wrench allows underwater bolting with the best in the most extreme applications. "D" style grip handle with side assist handle and hi-visibility yellow paint is standard.
Specifications
• Integral Stanley Hyrevz gear motor produces high torque
• Stainless Steel spools and fasteners
• Forward-Reverse with variable speed
• "D" style grip handle with inside trigger
• Feathering on/off trigger for precise control
• Adjustable impact intensity
• 3500 ft lbs/4760 Nm of maximum impact torque
• Durable swing hammer mechanism
• Cast-in lifting eye
| Model | Part No. | Capacity | Torque | Flow Range | Working Pressure | Full Relief Setting | Weight | Length | Width | Hydraulic Ports | Connect Size and Type | Couplers | Hose Whips |
| IW24 | IW24360 | 1½" Square Drive | 800 -3500 ft lbs /1088-4760 Nm | 7-12 gpm / 26-45 lpm | 1800-2000 psi /124-140 bar | 2250 psi / 155 bar | 43 lbs / 19.5 kg | 16½" / 41 cm | 5.1" / 13 cm | -8 SAE O-ring | 3⁄8" Male Pipe Adapter | No | No |
