Product Description

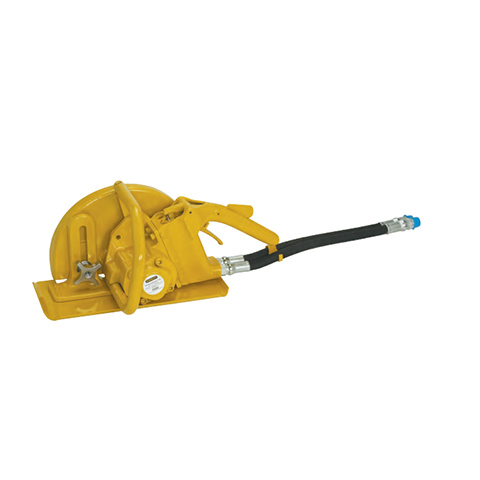

The CO23 Cut-Off Saw is a hydraulic powered saw for dimensional cutting of metal, concrete, rock, masonry and coral. It has a high torque gear motor and 10" blade capacity for abrasive and diamond wheels with a 1" arbor. The CO23 is designed for underwater operation and is painted hi-visibility yellow.
Features
• Integral Stanley Hyrevz gear motor produces high torque
• Direct drive motor
• Stainless Steel spool and fasteners
• Adjustable shoe for precise cuts
• Interlocking safety trigger
• Cast aluminum handle and guard for durability
• Counter-clockwise rotation
• Wide flow range
| Model | Capacity | Performance | Arbor | Circuit Type | Flow Range | Optimum Flow | Working Pressure | Full Relief Setting | Weight | Length | Width | Hydraulic Ports | Connection Size and Type | Couplers | Hose Whips |
| CO23341 | 10" / 25.4 cm wheel | 3275 rpm @ 15 gpm | 1" / 2.5CM | Open Center | 10-15 gpm /38-57 lpm | 15 gpm / 57 lpm | 1500-2000 psi /105-140 bar | 2250 psi / 155 bar | 23 lbs / 10.4 kg | 19½" / 49½ cm | 11" / 28 cm | -8 SAE O-ring | ½" Male Pipe Hose End | No | Yes |
