Product Description

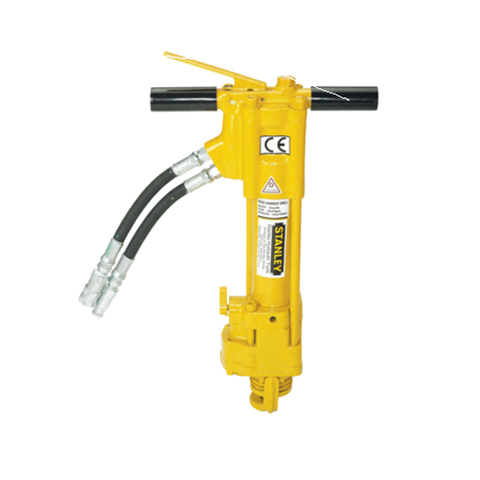

The Stanley Hydraulic HD45 Hammer Drill is a heavy duty underwater model designed for drilling in concrete, rock and masonry. The feathering on/off valve and adjustable rotation speed allows easy drill bit start-up and precise control. The high torque rotation motor drives standard 736 Skil hex carbide tipped drill bits and is capable of drilling a 2" diameter hole up to 29" deep. Fluted drill bits require no water or air to clear holes. Ideal for drilling holes for setting anchor bolts. Painted hi-visibility yellow.
Features
• T-Handle with large on/off trigger for precise control
• Stainless Steel spools and fasteners
• Forward-Reverse with adjustable bit rotation speed
• Feathering on/off valve allows easy start and control
• Uses 736 Skil fluted carbide tipped drill bits - requires no water/air to clear holes
• Drills ¾" to 2" diameter holes up to 29" deep and core drills up to 4" in diameter
• Operates in any position
• Trouble free drill steel latch retainer
| Model | Part No. | Chuck Capacity | Steel Capacity | Circuit Type | Flow Range | Optimum Flow | Working Pressure | Full Relief Setting | Rotation Speed | Weight(less tool bit) | Length | Width(at handles) | Hydraulic Ports | Couplers | Hose Whips |
| HD45 | HD45310 | Up to 2" diameter o 4" core bit | 736 Skil hex | Open Center | 7-9 gpm / 26-34 lpm | 8 gpm / 30 lpm | 1500-2000 psi / 105-140 bar | 2250 psi / 155 bar | 0 - 300 rpm | 49 lbs / 22.2 kg | 24½" / 62.2 cm | 14" / 35 cm | -8 SAE O-ring | No. | Yes (3⁄8" NPT Male thread) |
| HD4531001 CE, with couplers | Up to 2" diameter o 4" core bit | 736 Skil hex | Open Center | 7-9 gpm / 26-34 lpm | 8 gpm / 30 lpm | 1500-2000 psi / 105-140 bar | 2250 psi / 155 bar | 0 - 300 rpm | 49 lbs / 22.2 kg | 24½" / 62.2 cm | 14" / 35 cm | -8 SAE O-ring | Yes | Yes (3⁄8" NPT Male thread) |
