Product Description

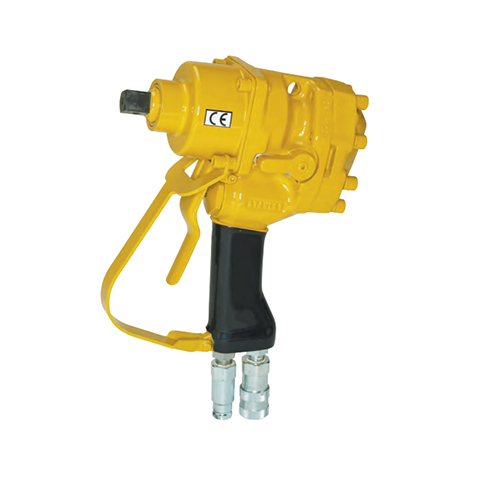

The Stanley IW12 is a medium duty ¾" square drive impact wrench designed for underwater bolting and drilling applications. Powered by a Stanley integral Hyrevz motor, the IW12 has a durable swing hammer impact mechanis with adjustable impact intensity from 250 to 1200 ft lbs (340 to 1632 Nm) of torque. Designed to run from a wide range of hydraulic circuits, this wrench allows underwater bolting in the most extreme applications. Trigger guard and hi-visibility yellow paint is standard.
Specifications
• Integral Stanley Hyrevz gear motor produces high torque
• Stainless Steel spools and fasteners
• Forward-Reverse with variable speed
• Pistol grip style handle
• Adjustable impact intensity
• 1200 ft lbs/1632 Nm of maximum impact torque
• Oversized trigger with guard for operator comfort
• Plastisol handle for comfortable ergonomic grip
• Durable swing hammer mechanism
• Cast-in lifting eye
| Model | Part No. | Capacity | Torque | Flow Range | Working Pressure | Full Relief Setting | Weight | Length | Width | Hydraulic Ports | Connect Size and Type | Couplers | Hose Whips |
| IW12 | IW12340C less couplers | ¾" / 19 mm Square Drive | 250 -1200 ft lbs / 340-1632 Nm | 4-12 gpm / 15-45 lpm | 1000-2000 psi / 70-140 bar | 2250 psi / 155 bar | 14 lbs / 6.4 kg | 11¼" / 28.6 cm | 4" / 10.2 cm | -8 SAE O-ring | 3⁄8" Male Pipe Adapter | No | No |
| IW1234001 CE with couplers | ¾" / 19 mm Square Drive | 250 -1200 ft lbs / 340-1632 Nm | 4-12 gpm / 15-45 lpm | 1000-2000 psi / 70-140 bar | 2250 psi / 155 bar | 14 lbs / 6.4 kg | 11¼" / 28.6 cm | 4" / 10.2 cm | -8 SAE O-ring | 3⁄8" Male Pipe Adapter | Yes | No |
